NetSuite Delivers on ODBC

NetSuite provides a read-only ODBC driver (common way to access a databases) to connect to its platform.  We are interested in this because we offer Secure Remote SQL Reporting Services which closes the gap for businesses that wish to fully leverage Cloud Computing but have discovered that NetSuite’s built-in report tools are not quite good enough.

Setup of the NetSuite ODBC Driver requires the following:

  1. Module Add-on Package purchased from NetSuite.
  2. Get the ODBC driver installed on client machines.  The ODBC Driver is available for download on the NetSuite Settings Dashboard. In our case, we configured this with our Remote SQL Reporting services integrated with Windows SharePoint Services.  For the purposes of this discussion, we will use Microsoft Access to illustrate connectivity.  The driver is available for download from the NetSuite dashboard Setting Portlet.
  3. Download and Install OpenSSL offered from Shining Light Productions.  Additional C++ distributables may be required.    These are clearly referenced on the site.  Be sure to donate to help further the cause to keep software costs low.

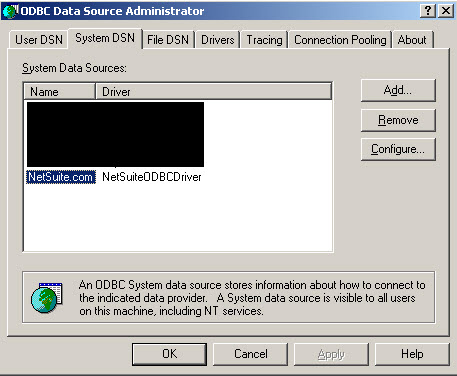

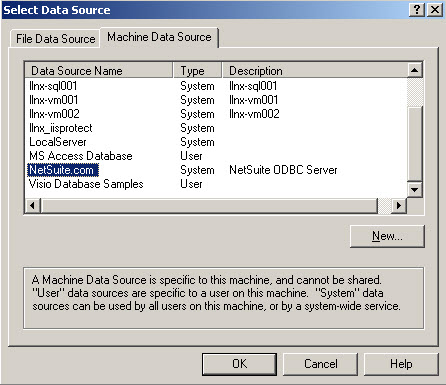

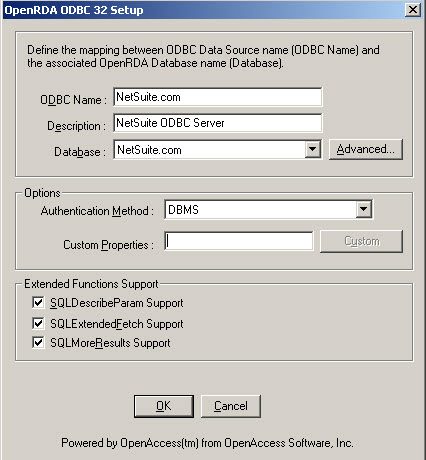

  4. Configure the Windows ODBC Driver.

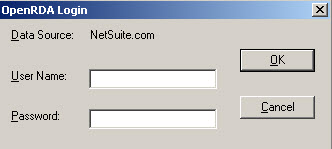

  5. Provide your NetSuite user name and password.

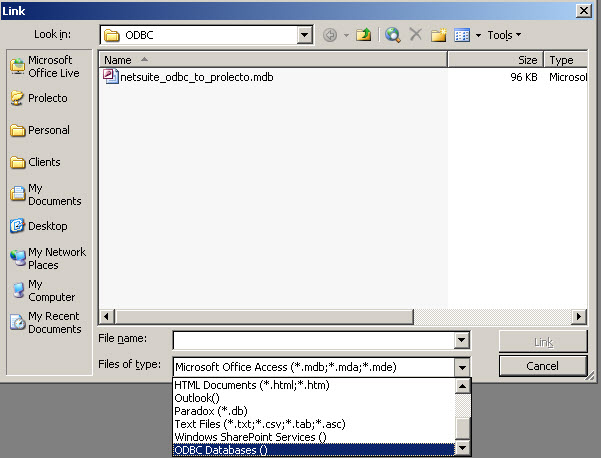

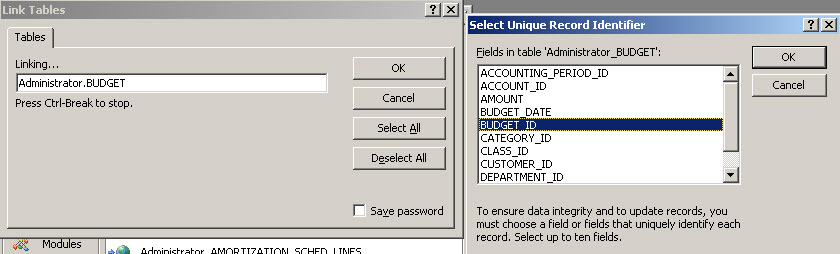

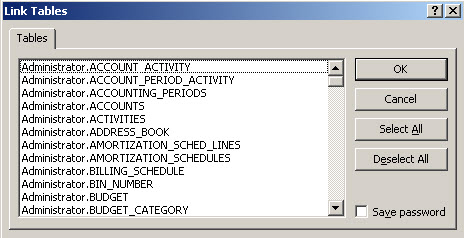

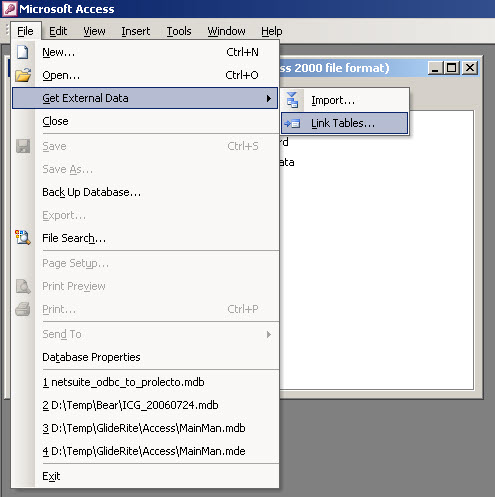

  6. Link to interested tables and provide reference to the respective primary key(s).  Use the NetSuite “Table of ODBC Views” guide for reference within the Help system.

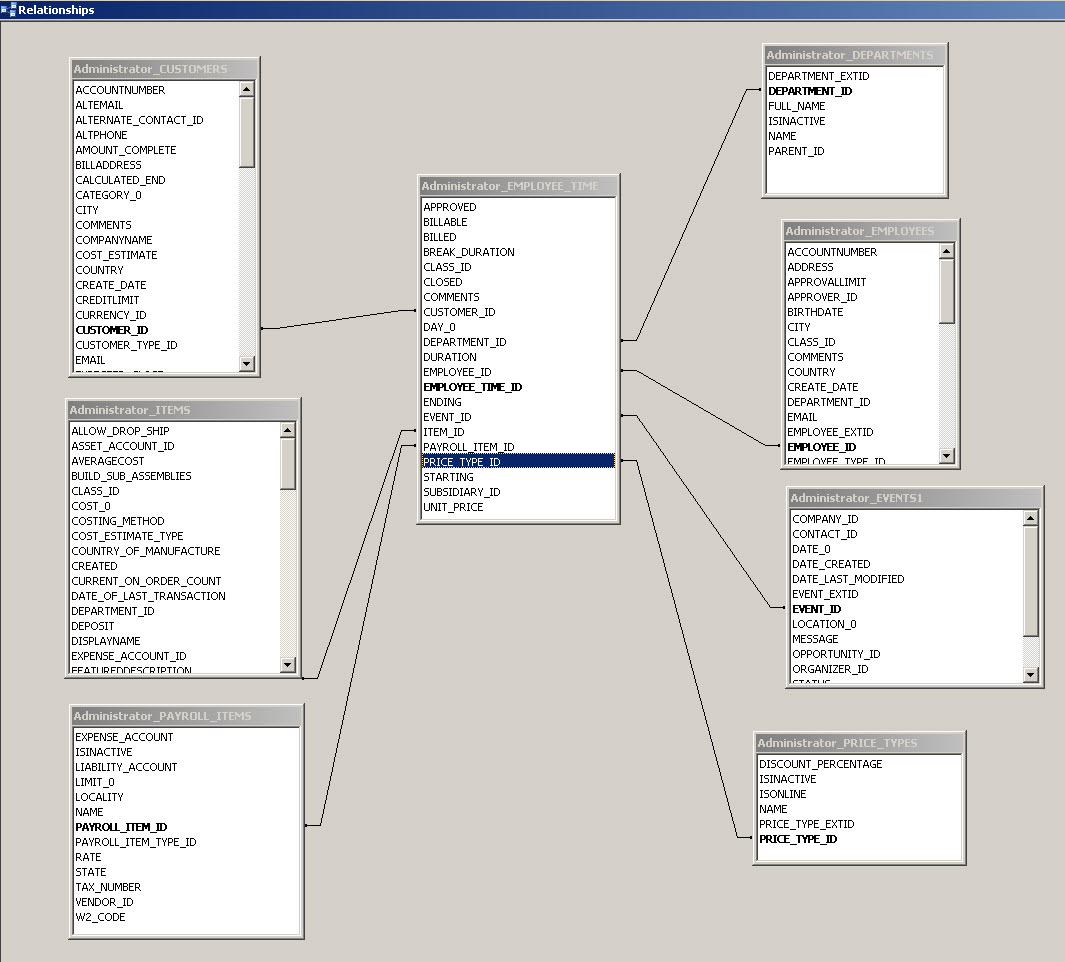

  7. Optionally, setup relationships to let the tools help you during the development of your queries.

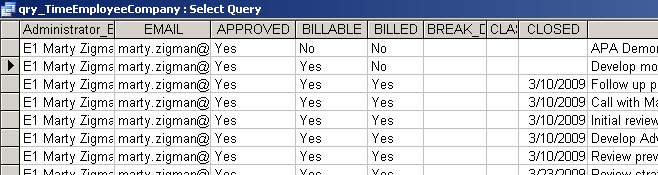

  8. Retrieve data into your application.

Related Articles

  1. SQL Reporting on NetSuite Data Step-By-Step
  2. Connecting ODBC to Multiple NetSuite Accounts
  3. NetSuite ODBC: “You Don’t Have Permission to Use ODBC.”
  4. NetSuite 64-bit ODBC Setup Instructions
  5. Extract NetSuite Data for Backup and Reporting
  6. Warning: SQL Server Linked Server to NetSuite Issues
  7. Considering Producing NetSuite Financial Statements using Third Party Tools?
If you need help working with ODBC on NetSuite to drive enhanced reporting, contact us.

Screen Shots

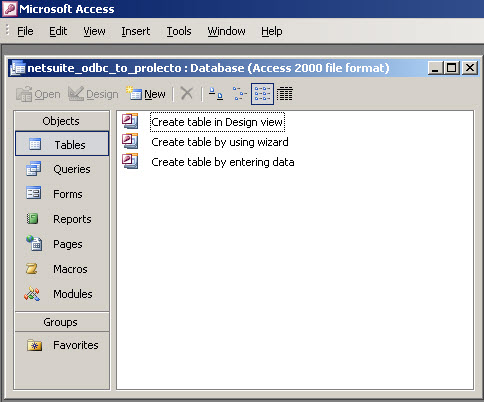

Below are screen shots of the configuration basic steps:

Be Sociable, Share!

Marty Zigman

Holding all three official certifications, Marty is Southern California's NetSuite expert and leads a team of senior professionals at Prolecto Resources, Inc. He is a former Deloitte & Touche CPA and has held CTO roles. For over 25 years, Marty has produced leadership in ERP, CRM and eCommerce business systems. Contact Marty to setup a conversation.

More Posts - Website - Twitter - Facebook - LinkedIn - Google Plus - YouTube

| Tags: , | Category: NetSuite | 39 Comments

38 Comments

  1. Alex Rykov
    Posted April 6, 2009 at 6:43 am | Permalink

    Where can this driver be downloaded? I see it mentioned in the docs. Yet I cannot find it.

  2. Alex Rykov
    Posted April 6, 2009 at 7:05 am | Permalink

    Found it: Once ODBC feature is enabled, go to the Home page, and in the Settings portlet, click the Download ODBC Driver link.

  3. marunach
    Posted January 31, 2012 at 7:38 am | Permalink

    Hi Mr Marty,

    I have a sql server 2008 dabaase containing a Datewarehouse. the user would liket to directly conenct to netsuite CRM and join the DW tables with CRM tables.

    1. how to go about it?
    2. should the ODBC driver be installed on client machine or inthe SQL server 2008 server?
    3. can we access the nwetsduite DB from sql management studio?
    4. do we really rewuire the wind32open ssl as in your posting?
    5. any other info i need to take care of?

  4. Posted January 31, 2012 at 7:57 am | Permalink

    Hello. Let me answer those questions:

    1. You need to get that add-on directly from NetSuite. I believe if you have a development account, they may be able to turn that on. But you are required to pay if it is on a production account.
    2. Where you install the driver depends on your integration approach. Assuming that you will be using SSIS, yes, you will want to install it on the Database Server.
    3. Yes, you will be able to connect to NetSuite and it will look like a regular database.
    4. Yes, as part of the installation, you may need to install some other “connection plumbing”. I believe the latest release, since this first post, has optimized this element.
    5. If you are nervous about the driver, I recommend installing it on a workstation and then connecting with a simple tool like MS Access. This will help you get comfortable with the installation process and the way it works before you touch a Production database.

    Let me know if this makes sense.

    Marty

  5. marunach
    Posted January 31, 2012 at 8:09 am | Permalink

    Hi Marty, Thanks for the quick response . Much appreciated.

    1. what is the addon you r talking about ?
    i thought just installing the driver would be sufficient enough.

    BTW, Great job your posts.just to compliment on your posts. they were really clear, concise ,simple and fast to understand

  6. Posted January 31, 2012 at 8:22 am | Permalink

    Yes, there are a number of add-ons that require NetSuite to throw switches. To determine what you have provisioned, go to: Setup, Company, View Billing Information, Add-On Modules. This will help clarify what capacities you have active and what you need to turn on.

  7. Posted February 9, 2012 at 1:48 pm | Permalink

    Marty,
    Thanks for the insight. Do you know where I can find more information on building a Connection String to use inside SSIS ODBC data source instead of using DSN’s? I have looked through the NetSuite help, finding nothing. I have done several web searches, and that is how I found your blog. But not really anything else on this topic. I have NS ODBC Drivers 6.0 (DataDirect) drivers installed and working using the DSN. But I would rather use a dynamic connection string in my SSIS packages.

    Thanks
    Jerome

  8. Posted February 9, 2012 at 2:22 pm | Permalink

    Marty,
    I did a little more digging, and found this gem:
    DataDirect – Specifying ODBC Connection Attributes

    The missing puzzle piece for me was to include the ENC=1 attribute.

    Jerome

  9. Posted February 16, 2012 at 10:02 am | Permalink

    Thanks Jerome. Appreciate the follow up for the community.

    Marty

  10. ganesh
    Posted May 30, 2012 at 6:40 am | Permalink

    Hi Marty,

    i got the ODBC driver from “Get the ODBC driver” when i installed it, its not showing up in the ODBC sources. I am using windows 7, 64 Bit

  11. John
    Posted June 7, 2012 at 9:43 am | Permalink

    Just an FYI, I just spent close to 2 weeks to try to connect to Netsuite from MSSQL 2012 express using the Netsuite ODBC driver 6.0 on my Windows 7 PC…

    The Solution? Call netsuite support they have the 64 bit version of the ODBC driver… It’s Netsuite ODBC 7 created by DataDirect.

    I’ve installed it, set it up and it now works wonders. although I had some complications, I got it to work fairly quickly!

    Thanks
    JG

  12. Posted June 7, 2012 at 10:15 am | Permalink

    Thanks John. That should help a number of people. I found studying the DataDirect driver helps to diagnose situations.

  13. Posted June 7, 2012 at 10:16 am | Permalink

    Ganesh,

    Have a look at John’s solution. It appears that you need to get the updated 64 bit driver. If you get a public link, post it here.

    Marty

  14. John
    Posted June 7, 2012 at 10:35 am | Permalink

    I’ve searched for a public link for over 2 weeks… as soon as I called Netsuite support they knew exactly what I needed and connected to my PC to send me the file.

    When we asked why it wasn’t public they said because DataDirect did it for them and they had some papers to finalize (or something of that matter) … I really didn’t care for the why I just wanted to get it to work after 2 weeks of banging my head on my desk!!!

    Ganesh, That’s exactly the behavior I was getting… If you run c:\windows\sysWOW64\odbcad32 you will be able to see it and edit it… not matter what you do it won’t work until you call netsuite support and get that netsuite odbc 7.00.

  15. Posted August 28, 2012 at 8:08 pm | Permalink

    Here are the instructions to setup the 64-bit ODBC drivers. http://blog.prolecto.com/2012/08/28/netsuite-64-bit-odbc-setup-instructions/

  16. Yukesh
    Posted March 24, 2013 at 11:30 am | Permalink

    Hello Marty,

    Am new to Netsuite.. Trying to extract data from netsuite using SSIS… I tried using Cozy roc s/w but facing issues in it. please suggest me a way ti extract data from Netsuite using SSIS..

  17. Posted March 25, 2013 at 6:15 am | Permalink

    Hello Yukesh,

    Here is a video on the basics of SSIS. http://www.youtube.com/watch?v=Jl0Vze2_6_o Instead of using Microsoft Access, as suggested in the video, use your NetSuite connection which was setup via your ODBC connection. Remember, you are now in the world of SSIS and there are MANY tools available to get data out of NetSuite. I recommend learning SSIS essentials.

    Marty

  18. Pravar Aseem
    Posted May 7, 2013 at 7:56 pm | Permalink

    Hi im using MS SQL Server 2008 to get data from NetSuite and the test connection is successful. However, the SCHEMA Tables are blank. Can you help?

    Thanks,
    Pravar

  19. Posted May 7, 2013 at 8:06 pm | Permalink

    Hi Pravar,

    Try clicking the options to show system tables on and off. I noticed this problem a couple of times and, by my memory only, I was able to play with the switches to eventually see everything. If you figure it out, let us know.

    Marty

  20. Manjesh
    Posted October 20, 2014 at 6:52 am | Permalink

    Hi Marty,

    I am trying to download ODBC connection but I am not able to see “Download ODBC Driver” option in my setting. We have already paid for ODBC connection. Do I need to be Admin to download ODBC Driver?
    Any Ideas?
    Thanks in advance.

  21. Posted October 20, 2014 at 7:54 am | Permalink

    Hello Manjesh,

    Yes, I suspect you need to be an Administrator to get to the area you can download the ODBC driver. These are good questions for NetSuite Support if you can’t find it.

    Let us know how you resolve it.

    Marty

  22. Manjesh
    Posted October 20, 2014 at 12:02 pm | Permalink

    Thanks for your quick response.
    Once my role was changed to administrator I am able to download ODBC connection. But I am not able to install. Once I double click install file I get error message ” Netsuit ODBC Driver 32 bit installer has stopped working”
    Any idea ??

  23. Posted October 26, 2014 at 12:07 pm | Permalink

    Hi Manjesh,

    This is a good NetSuite Support question. I suspect it has something to with your environment and possibly security context.

    Marty

  24. Ramarao
    Posted February 23, 2015 at 2:29 am | Permalink

    Hi I want to know the what database are used for store the Netsuite data. Is it possible to access the data.

  25. Posted March 19, 2015 at 3:10 pm | Permalink

    NetSuite’s database is Oracle. However, you don’t interact with Oracle directly. Instead, you interact with the data with different APIs. What are you trying to achieve?

    Marty

  26. Ramarao
    Posted March 23, 2015 at 4:16 am | Permalink

    Hi Marty Zigman,

    I want to integrate data into Netsuite from my legacy system,because I want to backup all the Netsuite data.

    Thank you.

  27. Posted March 27, 2015 at 1:12 pm | Permalink

    Hello Ramarao,

    There are many ways to get data out of NetSuite. The team at Sesame Software has done a very good job and bringing down all NetSuite data into an upadatable SQL Server database. We work with their product team to retrieve “difficult to obtain” data segments.

    Marty

  28. sowjanya
    Posted November 11, 2015 at 10:58 am | Permalink

    I am trying to read data from Netsuite. I installed “NetSuite Drivers 32bit” ODBC driver. I am building the connection string to connect to the host. can someone suggest how i can specify the Account Id, Role ID ? Pls note that i am not doing it from SSIS, i am a test trying to read data from Netsuite for the purpose of ETL testing.

  29. john lee
    Posted January 7, 2016 at 10:02 pm | Permalink

    Does the Sesame Software bring all NetSuite data include supporting file attachments?

  30. Posted January 16, 2016 at 11:14 am | Permalink

    Hi John,

    Yes, my understanding is that Sesame system does bring all the data down (we have helped them get to some hard to reach data). File attachments are part of the application.

    Marty

  31. Ryan
    Posted March 14, 2016 at 9:14 am | Permalink

    I’m curious if the NetSuite ODBC drivers provide access to the System Notes (audit log table). We’re currently using CData but it doesn’t seem to pull down that table and I don’t have the ODBC drivers [yet].

  32. Posted March 14, 2016 at 9:21 am | Permalink

    Hi Ryan,

    Take a look at the Connect Schema. Doesn’t the “Notes_system” object give what you need?

    Marty

  33. Ryan
    Posted March 14, 2016 at 1:28 pm | Permalink

    Thanks for the reply Marty! Notes_system would give us what we need, however we are currently using CData’s ODBC driver and it doesn’t seem to have access to that table. Based on your reply I’m assuming the NetSuite ODBC driver does in fact include this table.

  34. Hitesh Kumar
    Posted June 16, 2016 at 3:50 am | Permalink

    Hi Marty Zigman,

    Thanks for great support. i have 10 million records in my SQL database i want to move these to net suite and want two way synchronization as records can be modified by net suite or by application.
    Does SSIS is good option do i need any third party tool rather than ODBC driver

  35. Posted June 26, 2016 at 8:41 pm | Permalink

    Hello Hitesh,

    Good luck on your efforts. Remember, NetSuite’s ODBC offering (now called Suite Analytics) can only allow you to read, not write to the database. We have built a number of tools to do two way sync. But the team that really has this down is Sesame Software as they focus on these types of challenges: http://www.sesamesoftware.com/relational-junction/netsuite-backup/

    Marty

  36. Hitesh
    Posted September 22, 2016 at 1:37 am | Permalink

    Thanks Marty,
    I got lots of help from your blogs and able to complete most of work.

    Thanks,
    Hitesh Kumar

  37. Nishanth
    Posted October 10, 2016 at 11:20 am | Permalink

    I see that there are some questions around DataDirect. DataDirect has been acquired by progress. You may want to take a look at the following page: DataDirect ODBC Driver for SQL Server

  38. Ron
    Posted December 27, 2016 at 2:22 pm | Permalink

    Hi All,
    I’m currently evaluating few tools which allow me to extract data out of Netsuite to our local database so that we can report on it.
    Based on the price and feature which one is better between Netsuite SuiteAnalytics and CData Sofware Data Sync. I also see few people recommend Progress Data Direct.

    Sesame software does most of it but currently we only need to extract the data so their price is pretty expensive for us.

    Thanks in advance.
